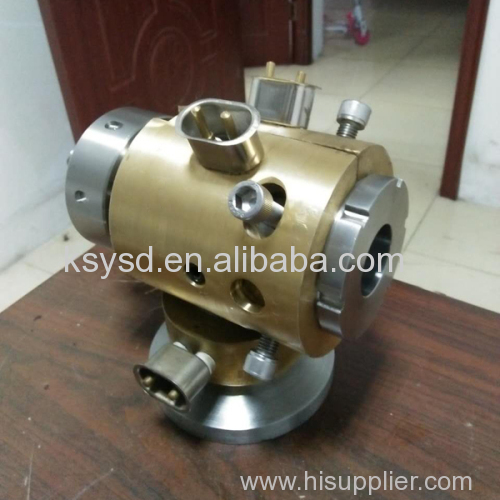

Technical specification

Min. diameter of conductor: Ø0.1 mm

Max. diameter of conductor: Ø10 mm

Max.diameter of wire: Ø12mm

Suitable extrusion material: PVC / PE / PA / PUR / LSZH…

Spiral diameter: 25-70mm

Technical parameters

MF: adjustable

SL: single layer

SLS: single layer + skin or Stripe

Distribution mono-flow:

Conical distribution cartridge

Easy to clean – no holes or slots – no dead spots

Constant and smooth part flow

No stresses and shear strains in the melted composition

We can supply following insulation structure wire/cables

• solid plain

• solid skin coloring

• solid skin color+stripe

• foam

• foam skin

• foam skin+stripe

• skin foam skin

• skin foam skin+stripe



About us---Kunshan Yishida Mould Machinery Co.,Ltd


1.we are a professional designed&manufacturer of electric wire head mould.

2.we have established in 1998 and has almost 20years experience in this field.

3.We can produce cable diameter range from 0.24mm-200mm

4.We produce hundreds of machine heads,such as free adjustable,adjustable,single-layer,double-layer co-extrusion,three-layer co-extrusion,flat wire,high temperature wire extrusion head.etc.

5.We have introduced several sets of domestic advanced five-axis CNC machining centers and CNC laths and other professional production exquipments.






If you have any porblem,pls feel free to contact us
